Make Fast Delivery Handheld Imaging Camera HT-18 Portable Thermal Imager HT18 220*160 High Resolution
Shining Points:
--3.2'' full color screen, allows for detailed showing of infrared generated images;
--220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
---20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
--5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
--automatic setting: 5 mintues/20 minutes/ not power off automatically;
--built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
--wide application fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
--seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
--mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
--ergonomic handle, which can be used and held comfortably;
Specification:
Display screen: 3.2'' full-color screen
Infrared image resolution: 220×160
Visible image resolution: 0.3 million pixel
Thermal sensitivity: 0.07°
Temperature measurement range: -20~300°(-4°~572°)
Measurement precision: ±2.5° or ±2.5%
Wavelength coverage: 8-14um
Field angle/shortest focus length: 27°×35°/0.5m
Emissivity: Adjustable from 0.1 to 10.0
Focus mode: Fixed
Image capture frequency: 8Hz
View option: full infrared and full vision Visible image with 25% step length
Storage medium: built-in 4G
Image format: JPG
Power supply: built-in chargeable 18650 batteries
USB: Micro USB2.0
Automatic power-off time: 5 mintues/20 minutes/ not power off automatically
Size: 90×105×223mm
Weight: 289g
Work temperature: 0° to 50°
Storage temperature: -40° to 80°
Humidity: <85RH

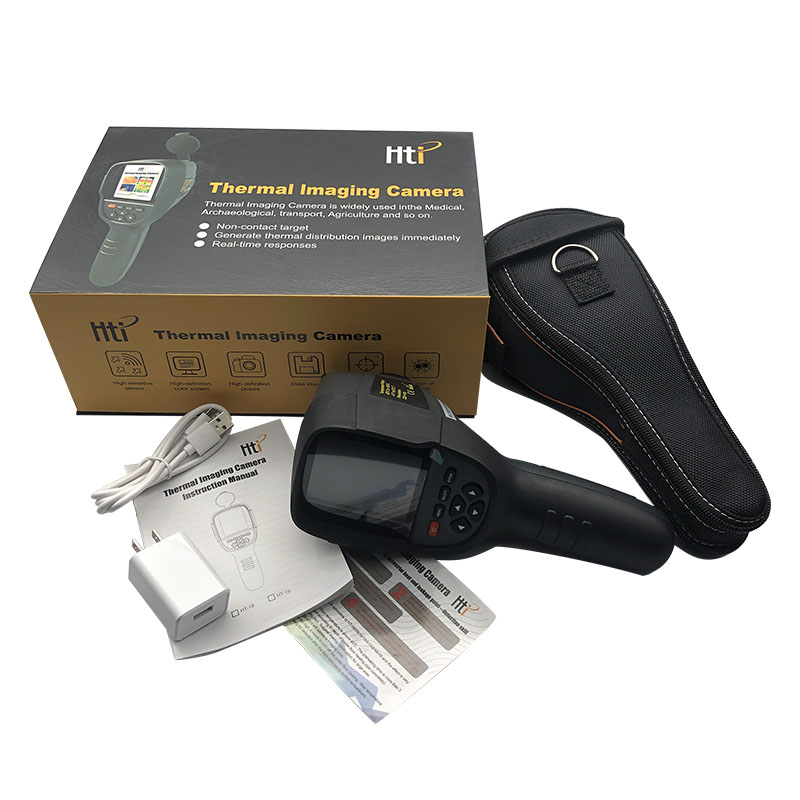

Package Includes:
1 x infrared temperature detector
1 x cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
1 x cardboard package box
