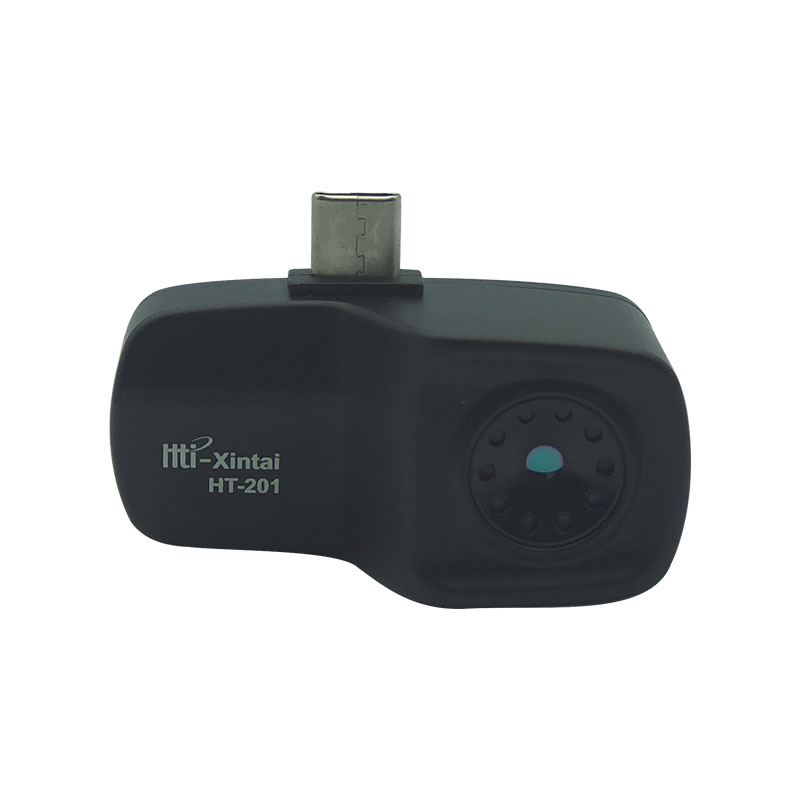

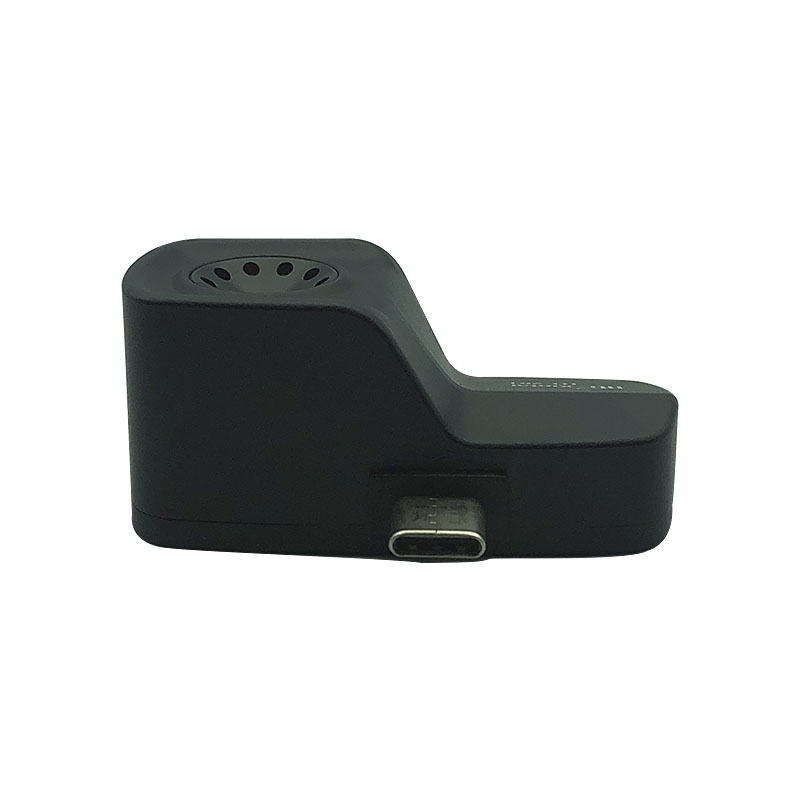

HT-201 High Quality Multifunctional External Infrared Thermal Imager Camera Thermometer for Android Mobile Phone with Adapter
Features:
Thermal imaging can be used day and night, as long as the object (thermal energy) emits infrared light, it can receive images within a certain distance.

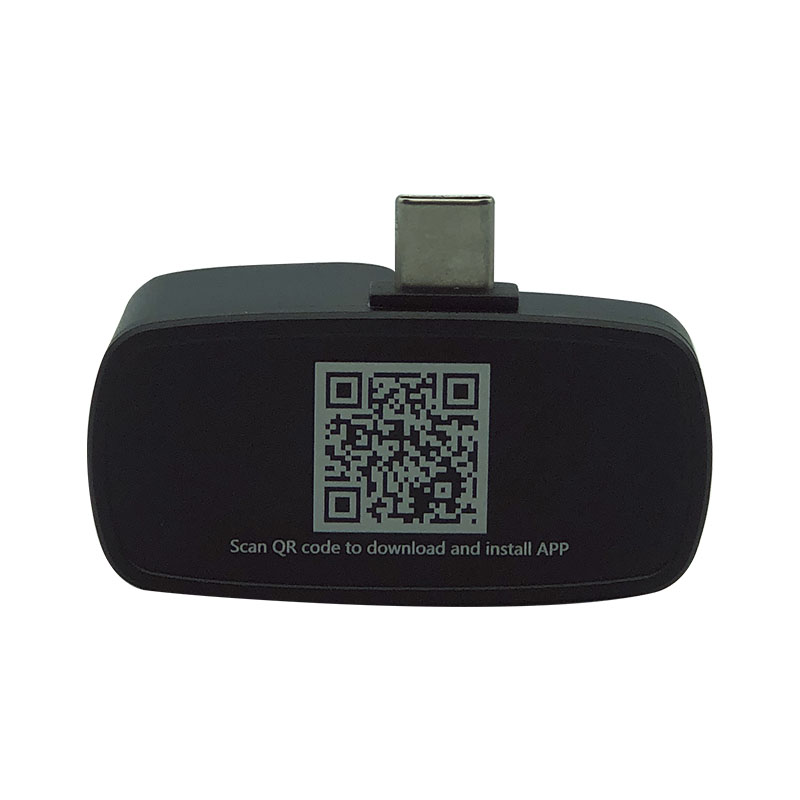

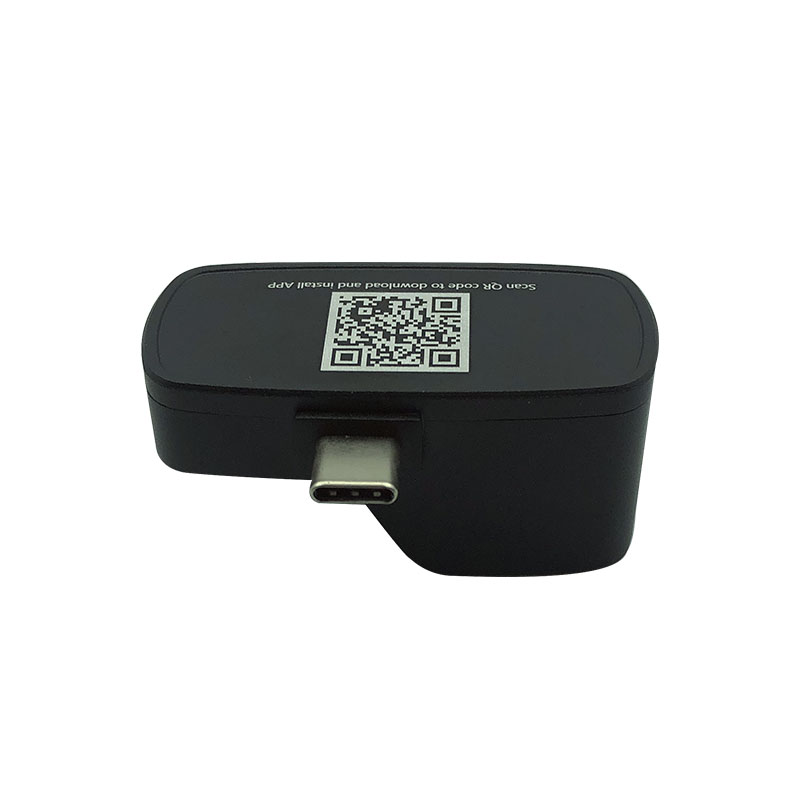

Easy to use, you just need to download the "Ht-Xintai" software on the mobile phone, then insert the thermal imager into your phone and the "Ht-Xintai" software will be opened automatically.
If your phone does't have USB Type C interface, please use self-carry adapter for conversion, the product contains an adapter.
Made of fine quality materials, practical, clearer imaging, has a long service life.
Function: picture and video viewing, take photo and video, palette setting, normal mode, display center point cursor, accurately locate specific temperature points, capture minimum and maximum temperatures, display multiple temperature data, display visible light images and infrared images side by side, switch front and rear camera.
Specification:
Material: metal
Color: black
Model: HT-201
Infrared imaging resolution: 320*240
Temperature measurement range: -40℃~330℃
Working band: 8-14μm
Field angle / focal length: 26° * 34°
Imaging format: JPG
Video format: MP4
Frame rate: 9Hz
Focal length: fixed
Detection range: 300m
Detection definition: find a target in the field of view. At this time, the imaging formed by the target must occupy more than 1.5 pixels in the critical dimension direction.
Shortest focal length: 0.15m
Target size: cover 4 pixels
Operation temperature range: 0℃~40℃
Storage temperature range: -20℃~60℃
Power supply: 5V (external equipment power supply)
Item size: 52 * 33 * 23mm / 2.0 * 1.3 * 0.9in
Item weight: 40g / 1.4ounce
Package size: 175 * 102 * 62mm / 6.9 * 4.0 * 2.4in
Package weight: 248g / 8.7ounce

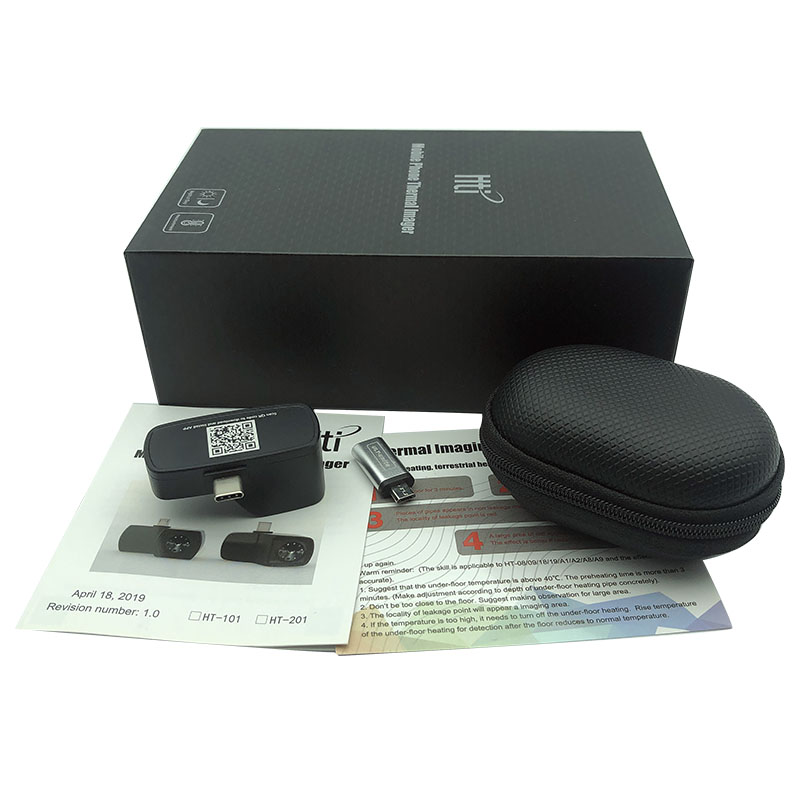

Package list:
1 * Mobile Phone Thermal Imager
1 * Adapter
1 * Storage Box
