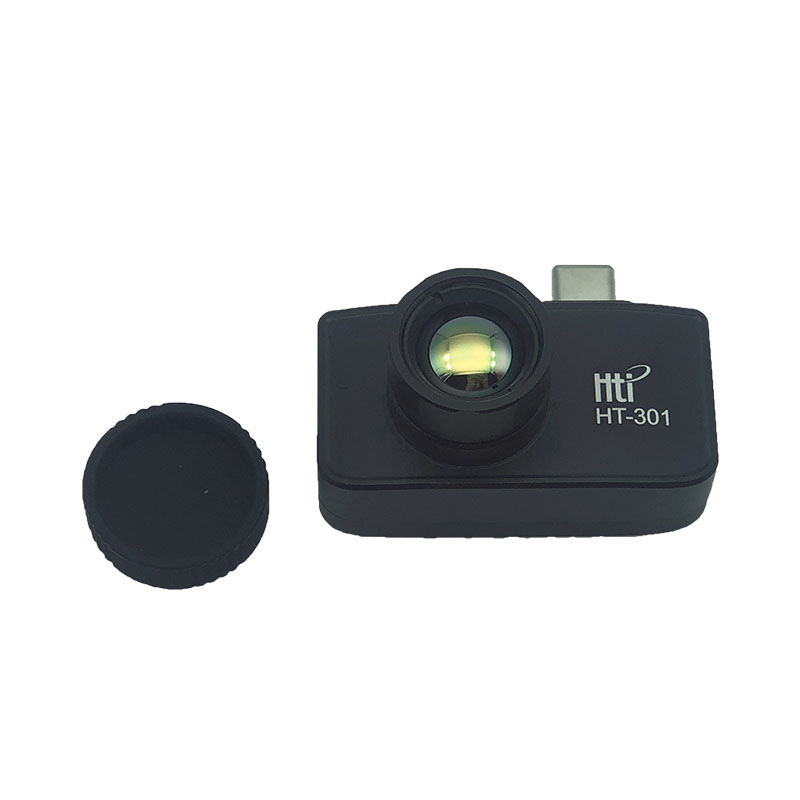

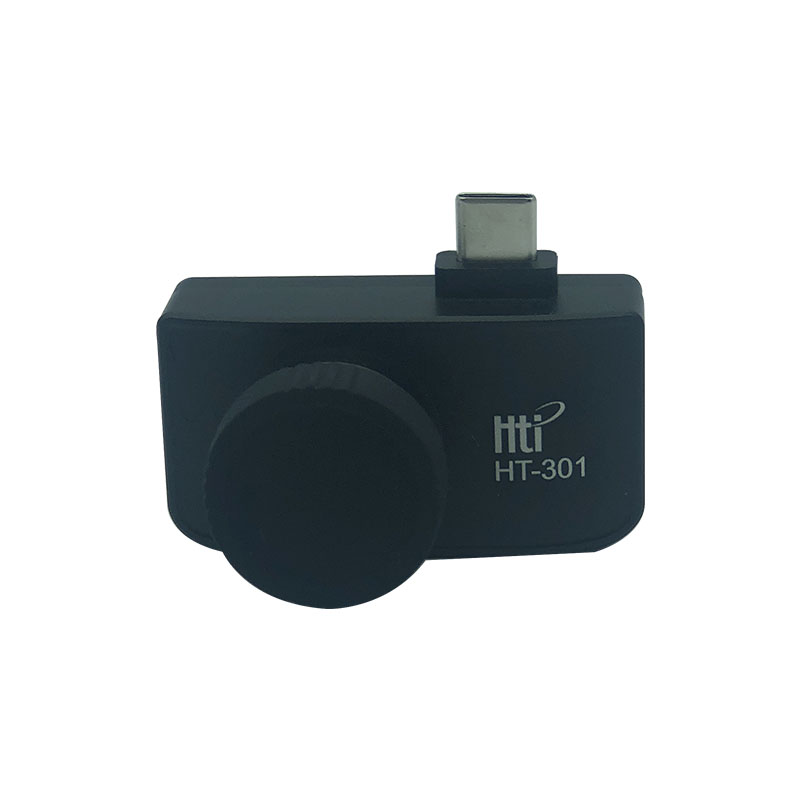

Thermal Imager HT-301 USB Thermal Infrared Imager Mobile Phone Thermal Infrared Imager for Android Phone Type C
Description:
100% brand new and high quality.
This product is operated by the "Thermal Viewer" software on the mobile phone after connecting to the mobile phone for Android system.
It is very simple to view the infrared image or measure the surface temperature of the objects
This product can be used for HVAC, building heat difference detection, equipment troubleshooting, preventive and predictive maintenance, etc.
Resolution: 384x288
Pixel size: 17pm
Response band: 8-14pm
Lens: 13mm
Focusing mode: manual
Image frame rate: 25Hz
MRTD: <500mK
Field of view: 28.2x21.3
Temperature switching: °C / °F
Temperature range: -20 ° C to 300 ° C (-4 ° F to 572 ° F)
Temperature measurement accuracy: ±3°C or ±3%
Language switching: English / Chinese
Temperature correction: manual / automatic
Power consumption: <500mW
Weight: 40g
Size: 49.5*36.1*29.3mm
Support system: Android 6.0 and above*
Interface Type: micro usbpe-c
Image Enhancement: Digital Detail Enhancement
Image correction: manual
Swatches: white hot, black hot, multiple pseudo-color boards
Temperature measurement statistics: maximum / minimum / center temperature / Regional temperature measurement/Line temperature measurement
Video save: support photo and video save function
Software Update: Support for online software update
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
